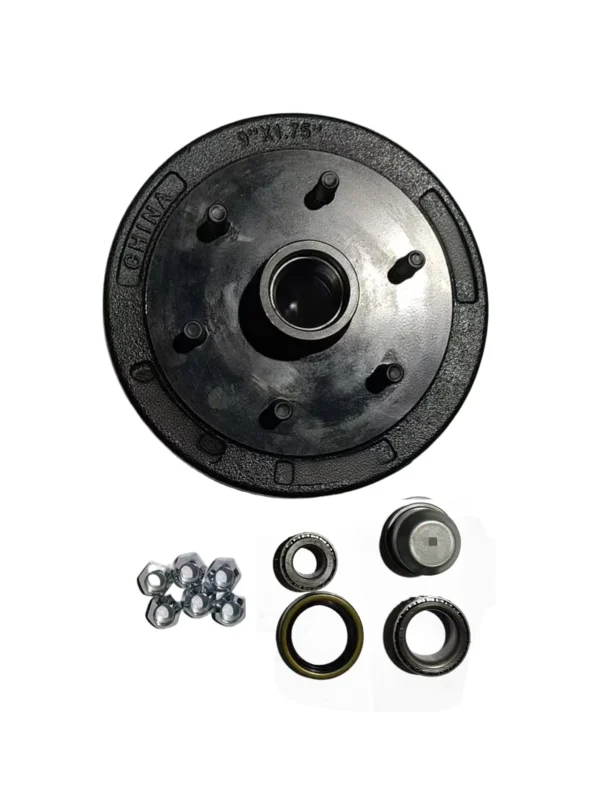

9″ Landcruiser Brake Drum (6×139.7MM PCD)& LM Bearing
9″ Landcruiser Brake Drum (6×139.7MM PCD)& LM Bearing(LM67010/LM11910),For 1000KG, 39MM Round/40MM Square Axle, ½”-20 Press In Studs.
BD59-5501
| Part Name | Quantity | Part No. | Parts Description |
|---|---|---|---|
| Wheel nut | 6 | 012-005 | 1/2"-20 cone wheel nut |
| 716-005 | 7/16"-20 cone wheel nut | ||
| Dust cap | 1 | 5022-0045 | 45MM |
| Oil seal | 1 | 5022-002 | Double lips |
| Bearing cone | 1 | 5022-0670 | LM67048 |
| Bearing cone | 1 | 5022-0119 | LM11949 |
Product Description: 9″ Landcruiser Brake Drum (6×139.7MM PCD) & LM Holden Bearing – Perfect Fit for Capacity 1000 KG -39/40MM Trailer Axle
Key Specifications:
- Axle Capacity: 1000 KG
- Bolt Pattern Options: 6×139.7MM PCD
- Material: High-grade QT-450 gray iron casting for excellent heat dissipation and wear resistance.
- Brake Drum Outer Diameter: 252.5MM– standard 9*1.75″ size for Landcruiser trailer axle assemblies.
- Weight: 6.92KG
- Bearing Cup (pre-pressed): –LM67010/LM11910-LM bearing,pre-pressed.
- Bearing Cone:LM67048/LM11949
- Bolt: ½”-20 Press In Studs
- Finish Options: Black paint, galvanised, or Dacromet coating – choose according to your corrosion resistance needs.
- Grease: Mobilgrease XHP™ 222 – available either without grease injection (user to add) or pre-lubricated for ready-to-install convenience.
B2B Advantages
- Factory direct pricing – no middlemen, ideal for volume procurement.
- Bulk packaging – standard export cartons or customized packaging upon request.
- OEM/ODM ready – we can add your brand, adjust finishes, or pre-install components.
- Quality assurance – each 9″ Drum is 100% inspected for runout, hardness, and dimensional accuracy.
Applications
This 9″ Landcruiser Brake Drum is widely used in utility trailers, boat trailers, car haulers, and light commercial trailers equipped with Landcruiser axles.
Package:
- Packaging type：cardboard box / wooden crate
