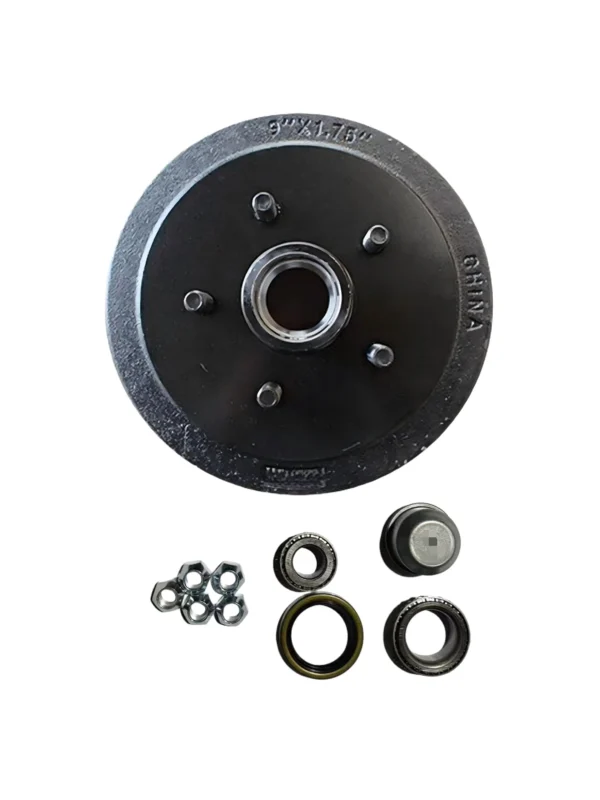

9" Holden HQ Brake Drum (5x120.65MM PCD)&LM Bearing

9″ Holden HQ Brake Drum(5×120.65MM PCD)& LM Bearing

9″ Holden HQ Brake drum (5×120.65MM PCD)& LM Holden Bearing(LM67010/LM11910);For 1000KG,39MM Round/40MM Square Axle,½”-20 Press In Studs.

BD49-4751

Part Name	Quantity	Part No.	Parts Description
Wheel nut	5	012-005	1/2"-20 cone wheel nut
Wheel nut	5	716-005	7/16"-20 cone wheel nut
Dust cap	1	5022-0045	45MM
Oil seal	1	5022-002	Double lips
Bearing cone	1	5022-0670	LM67048
Bearing cone	1	5022-0119	LM11949

SKU: 002-1-1-1-1-1-1-1-1-1-1-1-1-1-1-1-3-1-1-1-1-1-1-1-1-1-2-1-1-1-1-1-1 Categories: 9" brake drum, Australian Brake Drum

Product Description: 9″ Holden HQ Brake Drum (5×120.65MM PCD)& LM Holden Bearing – Perfect Fit for Capacity 1000 KG -39/40MM Trailer Axle

Key Specifications:

Axle Capacity: 1000 KG
Bolt Pattern Options: 5×114.3MM PCD
Material: High-grade QT-450 gray iron casting for excellent heat dissipation and wear resistance.
Brake Drum Outer Diameter: 252.5MM– standard 9*1.75″ size for Holden HQ trailer axle assemblies.
Weight: 6.92KG
Bearing Cup (pre-pressed): –LM67010/LM11910-LM bearing,pre-pressed.
Bearing Cone:LM67048/LM11949
Bolt: ½”-20 Press In Studs
Finish Options: Black paint, galvanised, or Dacromet coating – choose according to your corrosion resistance needs.
Grease: Mobilgrease XHP™ 222 – available either without grease injection (user to add) or pre-lubricated for ready-to-install convenience.

B2B Advantages

Factory direct pricing – no middlemen, ideal for volume procurement.
Bulk packaging – standard export cartons or customized packaging upon request.
OEM/ODM ready – we can add your brand, adjust finishes, or pre-install components.
Quality assurance – each 9″ Drum is 100% inspected for runout, hardness, and dimensional accuracy.

Applications
This 9″ Holden HQ Brake Drum is widely used in utility trailers, boat trailers, car haulers, and light commercial trailers equipped with 39/40MM Holden HQ axles.
