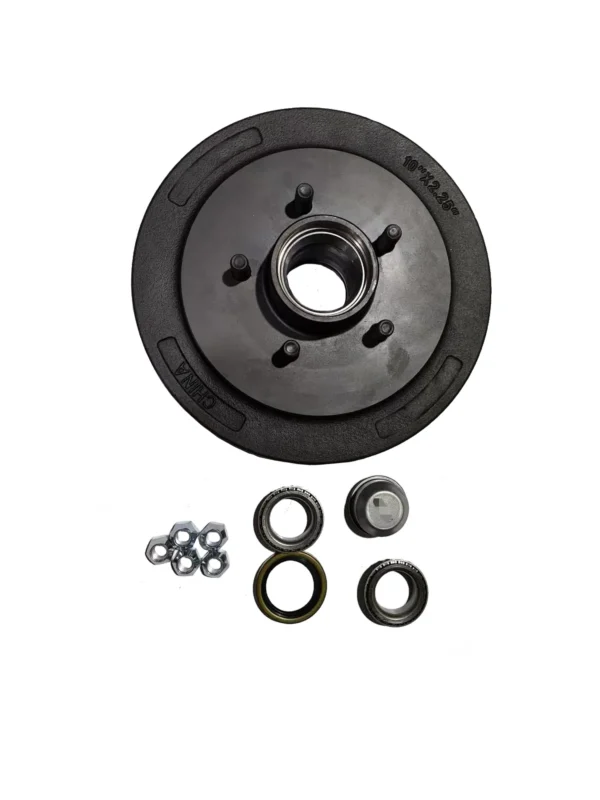

10"Ford Brake Drum (5×114.3MM PCD)& Parallel Bearing L68110

10″Ford Brake Drum (5×114.3MM PCD)& Parallel Bearing L68110

10″Ford Brake Drum (5×114.3MM PCD)& Parallel Bearing (L68110/L68110) ,For 1600KG, 50MM Square Axle, ½”-20 Press In Studs.

BD11-4501

Part Name	Quantity	Part No.	Parts Description
Wheel nut	5	012-005	1/2"-20 cone wheel nut
Dust cap	1	5022-0045	45MM
Oil seal	1	5022-002	Double lips
Bearing cone	1	006-006	L68149
Bearing cone	1	006-006	L68149

SKU: 002-1-1-1-1-1-1-1-1-1-1-1-1-1-1-1-3-1-1-1-1-1-1-1-1-1-2-1-1-1-1-1-1-1-1-1-1 Categories: 10" brake drum, Australian Brake Drum

Product Description: 10″Ford Brake Drum (5×114.3MM PCD) & Parallel Bearing L68110/L68110 – Perfect Fit for Capacity 1600KG, 50MM Square Axle.

Key Specifications:

Axle Capacity: 1600KG
Bolt Pattern Options: 5×114.3MM PCD
Material: High-grade QT-450 gray iron casting for excellent heat dissipation and wear resistance.
Brake Drum Outer Diameter: 278.8MM– standard 10*2.25″ size.
Weight: 11.6KG
Bearing Cup (pre-pressed): L68110/L68110–Parallel Bearing,pre-pressed.
Bearing Cone: L68149/L68149
Bolt: ½”-20 Press In Studs
Finish Options: Black paint, galvanised, or Dacromet coating – choose according to your corrosion resistance needs.
Grease: Mobilgrease XHP™ 222 – available either without grease injection (user to add) or pre-lubricated for ready-to-install convenience.

B2B Advantages

Factory direct pricing – no middlemen, ideal for volume procurement.
Bulk packaging – standard export cartons or customized packaging upon request.
OEM/ODM ready – we can add your brand, adjust finishes, or pre-install components.
Quality assurance – each 10″Ford Brake Drum is 100% inspected for runout, hardness, and dimensional accuracy.

Applications
This 10″Ford Brake Drum is widely used in utility trailers, boat trailers, car haulers, and light commercial trailers equipped with 50MM Square Axle.
