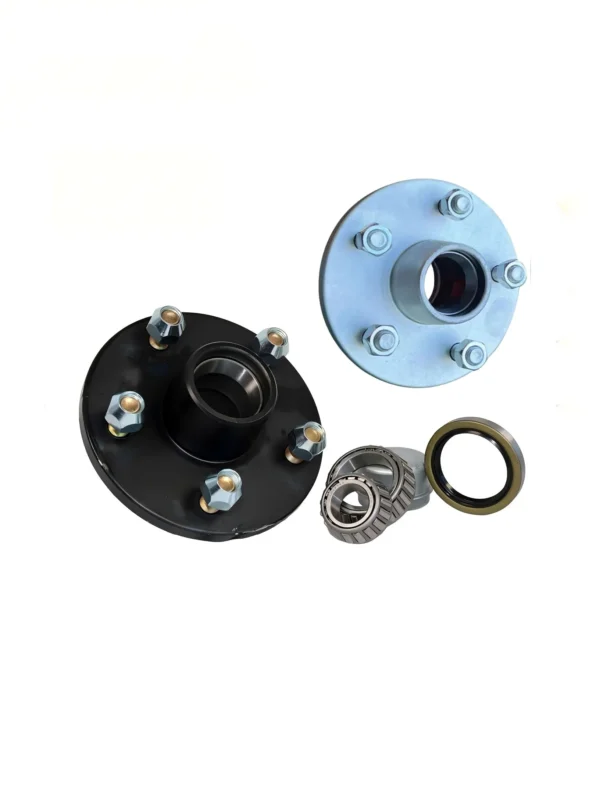

6″ Ford Lazy Hub (5×114.3MM PCD)& LM Bearing
6″ Ford Lazy Hub (5×114.3MM PCD)& LM Bearing(LM67010/LM11910 Bearing Cup),For 1000KG Lazy Axle, 152.4MM Outer Diamete,1/2″-20 Press In Studs.
860-A524
| Part Name | Quantity | Part No. | Parts Description |
|---|---|---|---|
| Wheel nut | 5 | 5022-0716 | 7/16"-20 cone wheel nutnut |
| Bearing cone | 1 | 5022-0670 | LM67048 |
| Bearing cover | 1 | 5022-0119 | LM11949 |
| Dust cap | 1 | 5022-0045 | 45MM |
| Oil seal | 1 | 5022-002 | Double lips |
Product Description: 6″ Ford Lazy Hub (5×114.3MM PCD) & LM Bearing – Perfect Fit for Capacity 1000 KG -39/40MM Trailer Axle
Key Specifications:
- Axle Capacity: 1000 KG
- Bolt Pattern Options: 5×114.3MM PCD
- Material: High-grade QT-450 gray iron casting for excellent heat dissipation and wear resistance.
- Brake Drum Outer Diameter: 152.4MM
- Weight: 2.47KG
- Bearing Cup (pre-pressed): –LM67010/LM11910-LM bearing,pre-pressed.
- Bearing Cone: LM67048/LM11949
- Bolt: ½”-20 Press In Studs
- Finish Options: Black paint, galvanised, or Dacromet coating – choose according to your corrosion resistance needs.
- Grease: Mobilgrease XHP™ 222 – available either without grease injection (user to add) or pre-lubricated for ready-to-install convenience.
B2B Advantages
- Factory direct pricing – no middlemen, ideal for volume procurement.
- Bulk packaging – standard export cartons or customized packaging upon request.
- OEM/ODM ready – we can add your brand, adjust finishes, or pre-install components.
- Quality assurance – each 6″ Ford Lazy Hub is 100% inspected for runout, hardness, and dimensional accuracy.
Applications
This 6″ Ford Lazy Hub is widely used in utility trailers, boat trailers, car haulers, and light commercial trailers equipped with 39/40MM Ford axles.
Package:
- Packaging type：cardboard box / wooden crate
