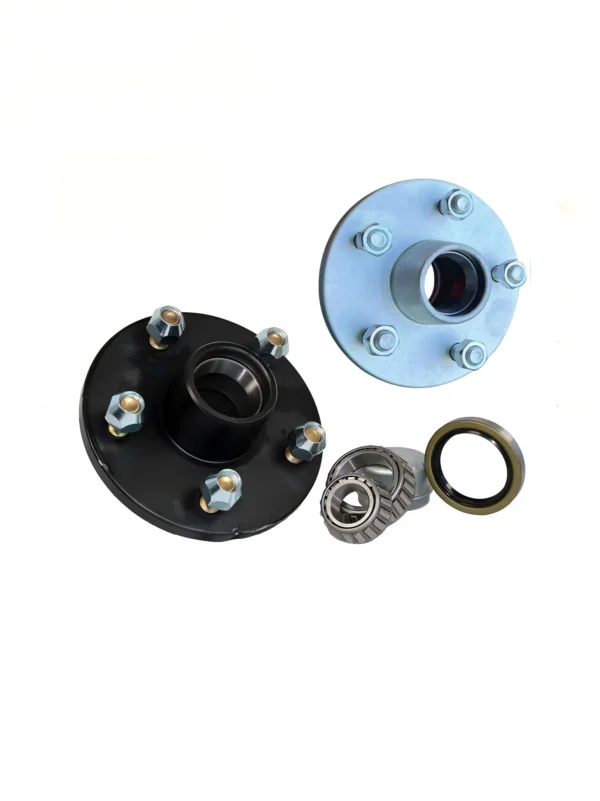

5 15/32″ Holden HT Lazy Hub (5×107.95MM PCD)& LM Bearing
5 15/32″ HT Lazy Hub (5×107.95MM PCD)& LM Bearing(LM67010/LM11910 Bearing Cup),For 1000KG Lazy Axle, 138.7MM Outer Diameter,7/16″-20 Press In Studs
850-A522
| Part Name | Quantity | Part No. | Parts Description |
|---|---|---|---|
| Wheel nut | 5 | 5022-0716 | 7/16"-20 cone wheel nutnut |
| Bearing cone | 1 | 5022-0670 | LM67048 |
| Bearing cover | 1 | 5022-0119 | LM11949 |
| Dust cap | 1 | 5022-0045 | 45MM |
| Oil seal | 1 | 5022-002 | Double lips |
Product Description: 5 15/32″ HT Lazy Hub (5×107.95MM PCD) & LM Bearing – Perfect Fit for Capacity 1000 KG -39/40MM Trailer Axle
Key Specifications:
- Axle Capacity: 1000KG
- Bolt Pattern Options: 5×107.95MM PCD
- Material: High-grade QT-450 gray iron casting for excellent heat dissipation and wear resistance.
- Brake Drum Outer Diameter: 138.7MM– standard 9*1.75″ size for Holden HT trailer axle assemblies.
- Weight: 2.4KG
- Bearing Cup (pre-pressed): LM67010/LM11910-LM bearing,pre-pressed.
- Bearing Cone: LM67048/LM11949
- Bolt: 7/16″-20 Press In Studs.
- Finish Options: Black paint, galvanised, or Dacromet coating – choose according to your corrosion resistance needs.
- Grease: Mobilgrease XHP™ 222 – available either without grease injection (user to add) or pre-lubricated for ready-to-install convenience.
B2B Advantages
- Factory direct pricing – no middlemen, ideal for volume procurement.
- Bulk packaging – standard export cartons or customized packaging upon request.
- OEM/ODM ready – we can add your brand, adjust finishes, or pre-install components.
- Quality assurance – each 5 15/32″ HT Lazy Hub- LM Bearing is 100% inspected for runout, hardness, and dimensional accuracy.
Applications
This 5 15/32″ HT Lazy Hub is widely used in utility trailers, boat trailers, car haulers, and light commercial trailers equipped with 39/40MM Holden HT axles.
Package:
- Packaging type：cardboard box / wooden crate
