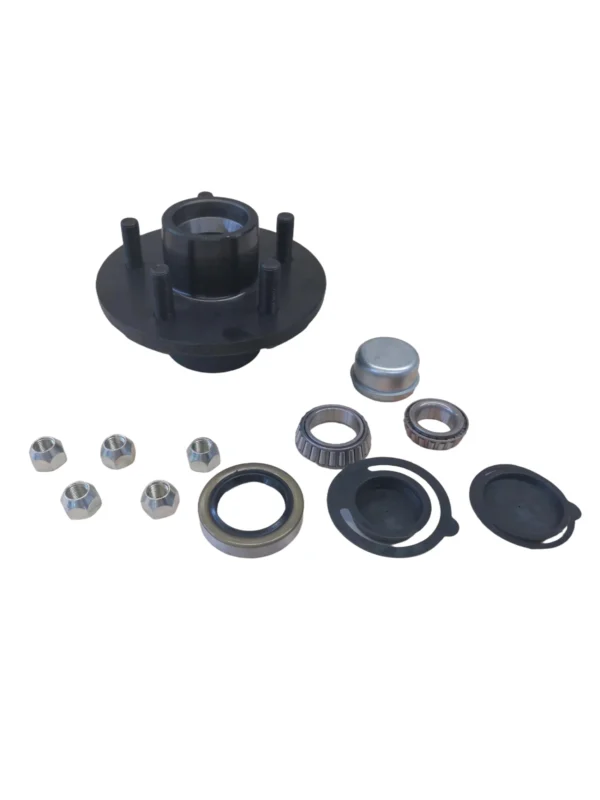

3500 lb Brake hub-5 on 5.50 PCD| H-550
3500 lb Brake hub- 5 on 5.50 PCD a with L68111/L44610 Bearing cap; L68149/L44649 bearing cone;1.72″Double lip Oil seal,1/2″-20 Press In Studs.
H-550
| Part Name | Quantity | Part No. | Parts Description |
|---|---|---|---|
| Wheel nut | 5 | 012-005 | 1/2"-20 cone wheel nut |
| Dust cap | 1 | 098-001 | 1.98". drive in |
| Bearing cone | 1 | 006-006 | L68149 |
| Bearing cone | 1 | 046-006 | L44649 |
| Bearing cover | 2 | 005-002 | Plastic |
| Oil seal | 1 | 072-003 | 1.72" Double lip |
This 3500 lb Brake hub-5 on 5.50 PCD | H-550
- Axle Capacity: 3,500 lbs.
- Bolt Pattern: 5 on 5.50″PCD
- Material：HT250/G3000
- outer diameter：6 5/16″
- weight：3.1KG
- Bearing Cup (pre-pressed): L68111 / L44610 – pre-pressed.
- Bearing Cone: L68149 / L44649.
- Dust cap:1.98″ dust cap
- Oil seal: 1.72″Double lip
- Bolt: ½”-20 Press In Studs
- Finish Options: Black paint, galvanised, or Dacromet coating – choose according to your corrosion resistance needs.
- Grease: Mobilgrease XHP™ 222 – available either without grease injection (user to add) or pre-lubricated for ready-to-install convenience.
Package:
- Packaging type：cardboard box / wooden crate
