10" Holden HT Brake Drum (5×107.95 PCD)& LM Bearing

10″ Holden HT Brake Drum (5×107.95 PCD)& LM Bearing

10″ Holden HT Brake Drum (5×107.95 PCD)& LM Bearing(LM67010/LM11910) For 1000KG, 39MM Round/40MM Square Axle,½”-20 Press In Studs.

BD41-4251

Part Name	Quantity	Part No.	Parts Description
Wheel nut	5	012-005	1/2"-20 cone wheel nut
Wheel nut	5	716-005	7/16"-20 cone wheel nut
Dust cap	1	5022-0045	45MM
Oil seal	1	5022-002	Double lips
Bearing cone	1	5022-0670	LM67048
Bearing cone	1	5022-0119	LM11949

SKU: 002-1-1-1-1-1-1-1-1-1-1-1-1-1-1-1-3-1-1-1-1-1-1-1-1-1-2-1-1-1-1-1-1-1-1-1-1-1-1-1 Categories: 10" brake drum, Australian Brake Drum

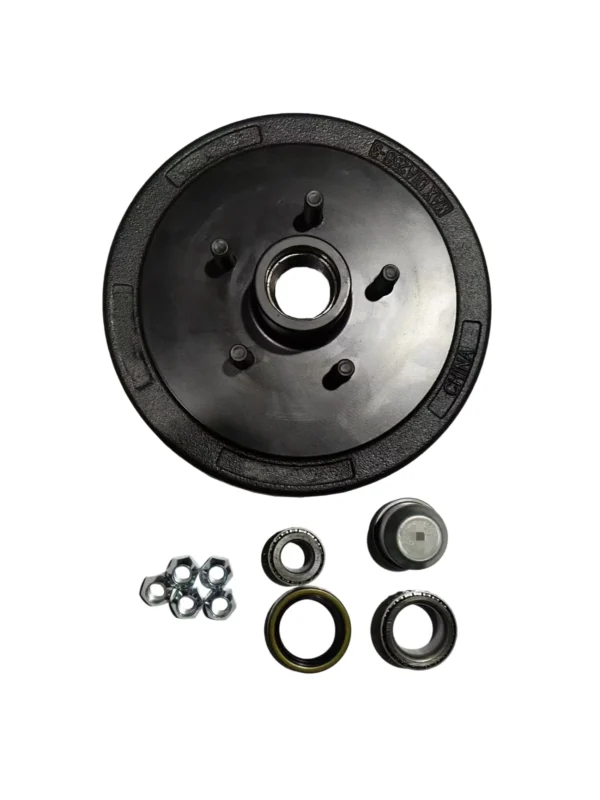

Product Description: 10″ Holden HT Brake Drum(5×107.95MM PCD) & LM Bearing – Perfect Fit for Capacity 1000 KG -39/40MM Trailer Axle

Key Specifications:

Axle Capacity: 1000KG
Bolt Pattern Options: 5×107.95MM PCD
Material: High-grade QT-450 gray iron casting for excellent heat dissipation and wear resistance.
Brake Drum Outer Diameter: 278.8MM– standard256-3 size .
Weight: 9.7KG
Bearing Cup (pre-pressed): –LM67010/LM11910-LM bearing,pre-pressed.
Bearing Cone:LM67048/LM11949
Bolt: ½”-20 Press In Studs
Finish Options: Black paint, galvanised, or Dacromet coating – choose according to your corrosion resistance needs.
Grease: Mobilgrease XHP™ 222 – available either without grease injection (user to add) or pre-lubricated for ready-to-install convenience.

B2B Advantages

Factory direct pricing – no middlemen, ideal for volume procurement.
Bulk packaging – standard export cartons or customized packaging upon request.
OEM/ODM ready – we can add your brand, adjust finishes, or pre-install components.

Applications
This 10″ Brake Drum is widely used in utility trailers, boat trailers, car haulers, and light commercial trailers equipped with 39/40MM Holden HT axles.
