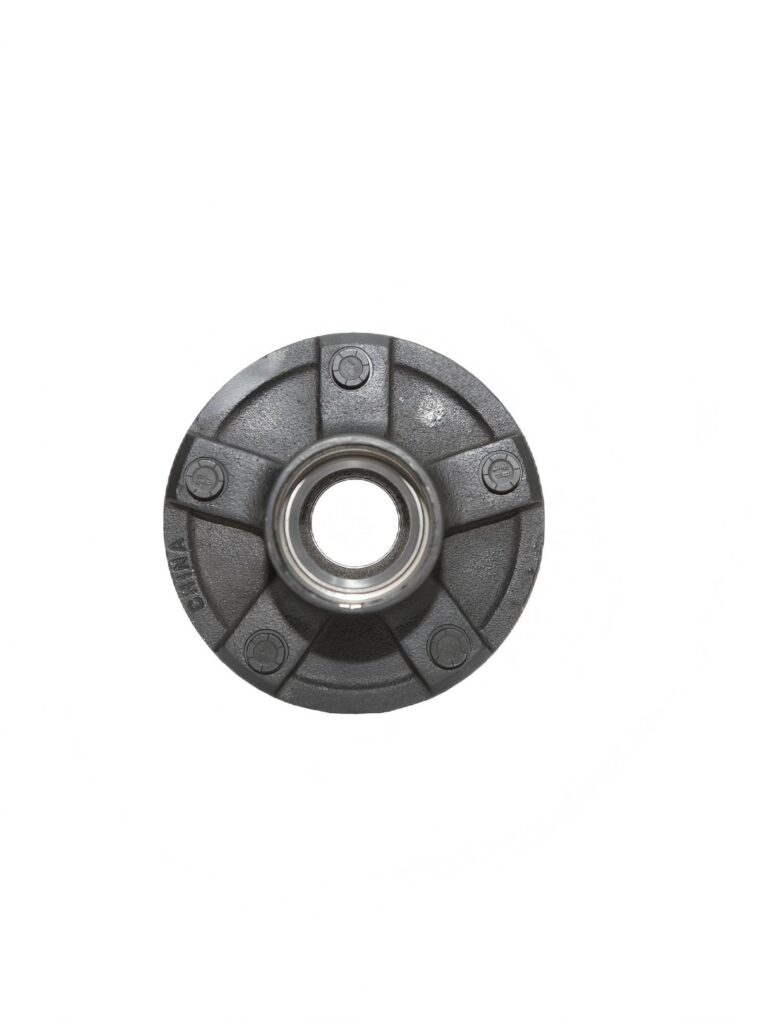

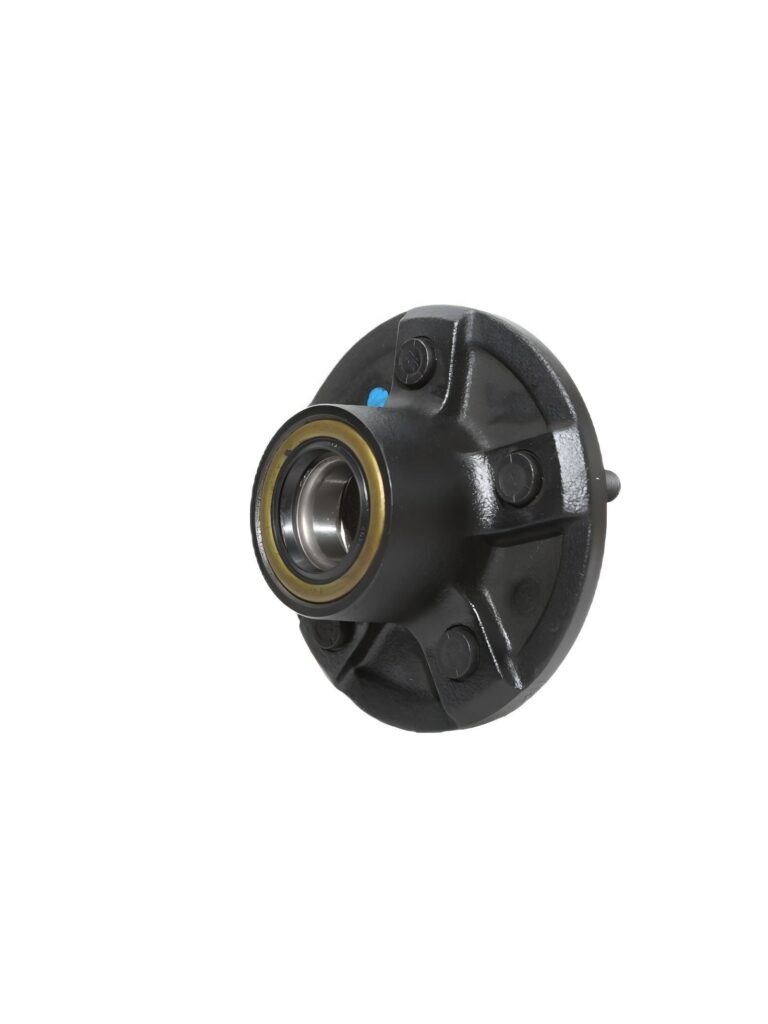

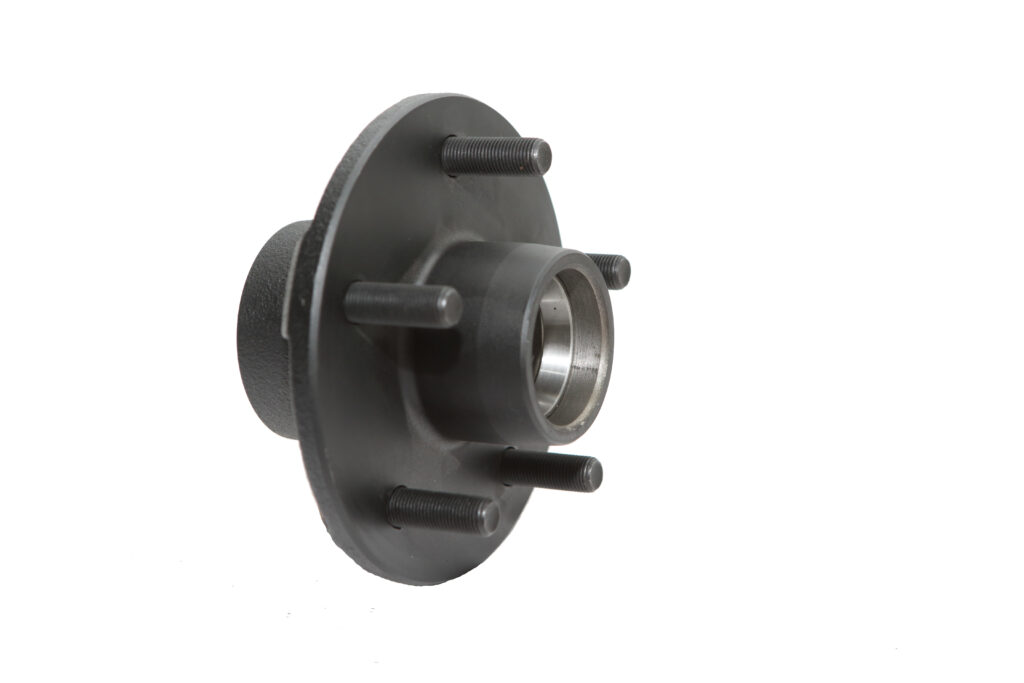

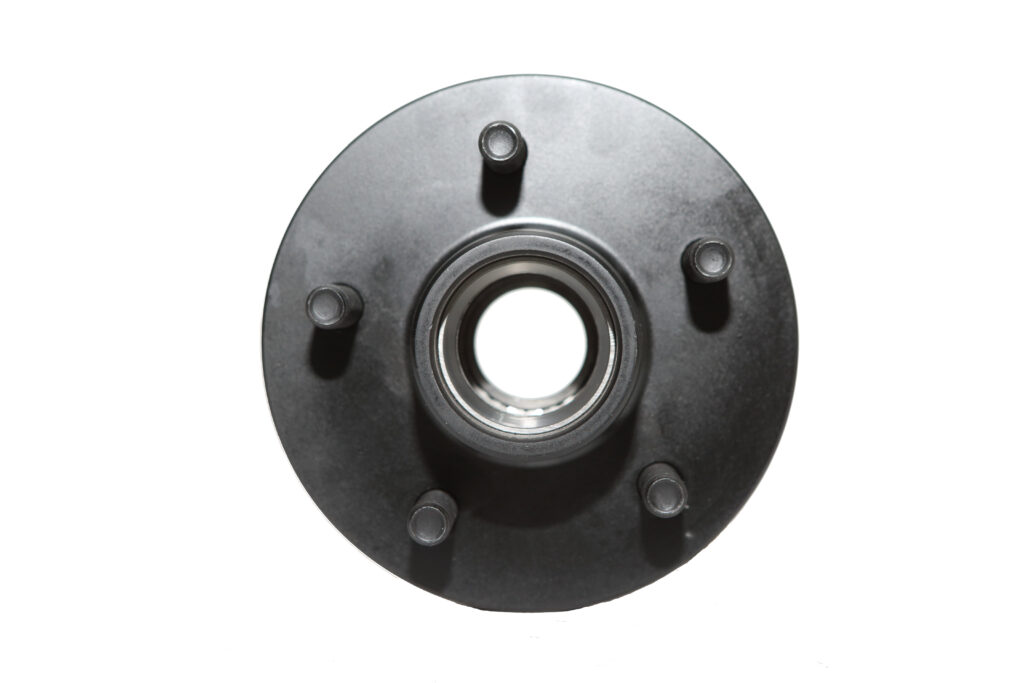

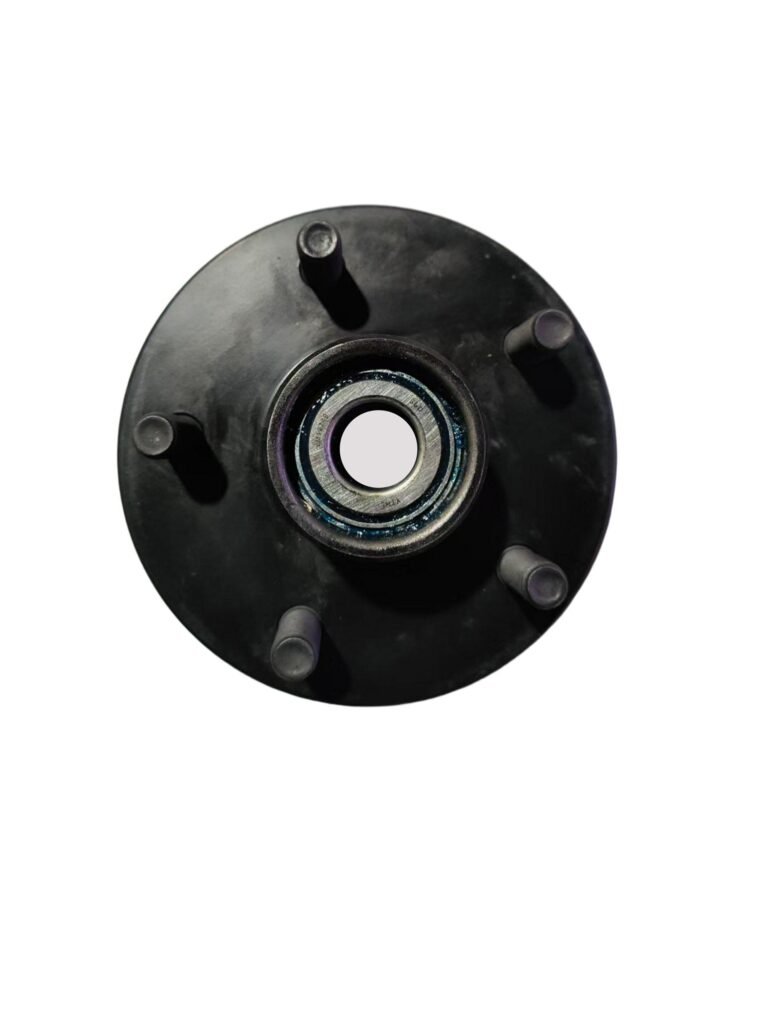

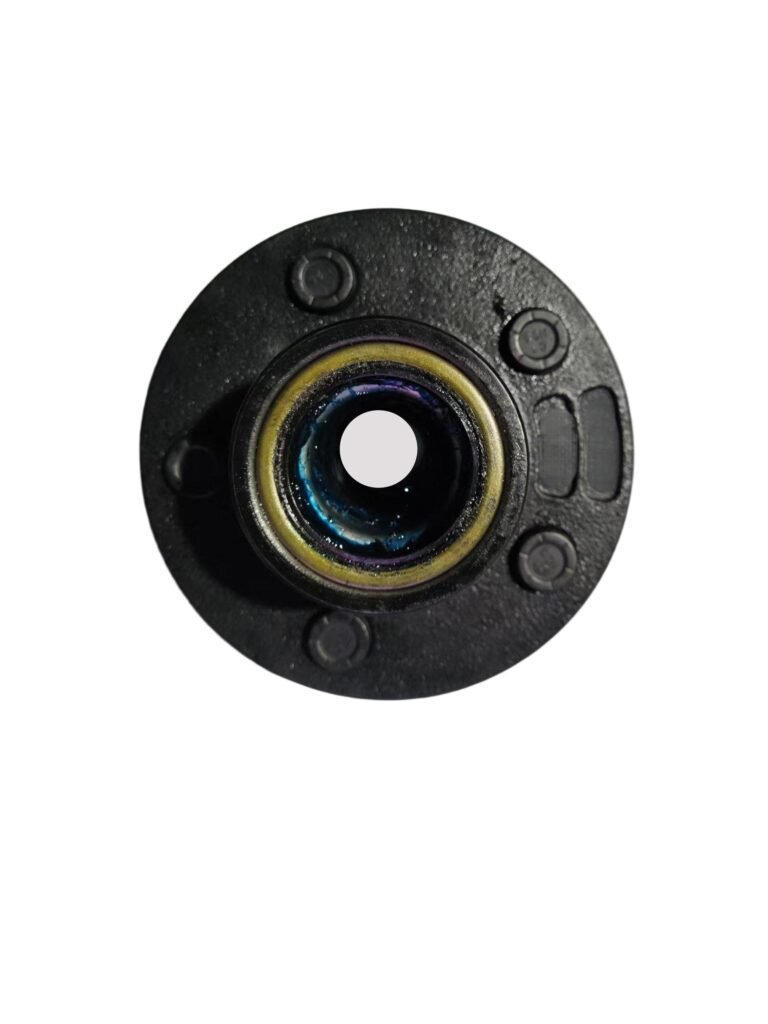

Product Model: SH-150 hub kit

Applicable Vehicles/Equipment: 2000LBS Idler Axle (Non-Driving Axle for Trailers)
Certification/Standard: Complies with U.S. industry standard L44610/L44610 (for trailer and non-driving axle braking systems).

1. Key Technical Specifications

1. Bolt Pattern (PCD):

   • 5-4.50 PCD: 5-lug wheel hub with a 4.5-inch (≈114.3mm) bolt circle diameter, compatible with standard American trailer axles.

   • Wheel Mounting: ½”-20 press-in studs for secure, high-strength fastening and anti-loosening.

2. Material & Manufacturing:

   • Material: High-tensile cast iron (HT250 or equivalent), heat-treated for enhanced wear resistance.

   • Precision Machining: CNC-turned inner bore and braking surface ensure concentricity and smooth braking.

3. Dimensional Compatibility:

   • Direct replacement for L44610 standard hub assemblies, requiring no modifications.

2. Core Advantages

1. Heavy-Duty Design:

   • Engineered for 2000LBS idler axles, offering high load-bearing capacity and deformation resistance, ideal for medium-duty trailers (e.g., logistics, agricultural equipment).

2. Safety & Durability:

   • Vented design with heat-dissipation grooves reduces thermal fade and extends brake pad life.

   • Anti-corrosion treatment (optional zinc plating or coating) for humid/salty environments.

3. Plug-and-Play Installation:

   • Pre-installed press-in studs save assembly time, compatible with standard ½”-20 lug nuts.

3. Typical Applications

• Compatible Vehicles:

  • U.S.-spec utility trailers, boat trailers, agricultural towed equipment (e.g., harvesters).

  • Warehouse logistics carts, airport ground support idler axles.

• Aftermarket Fitment:

  • Direct replacement for L44610-coded brake drums, compatible with Carlisle, Dexter, and other major axle brands.

4. Warranty & Support

• Warranty: 18 months or 50,000 km (whichever comes first).

• Technical Support: Installation guidance & torque specs (recommended stud torque: 90-110 lb-ft)
