Introduction to the components of trailer brake drum

Introduction to Trailer Brake Drum Components

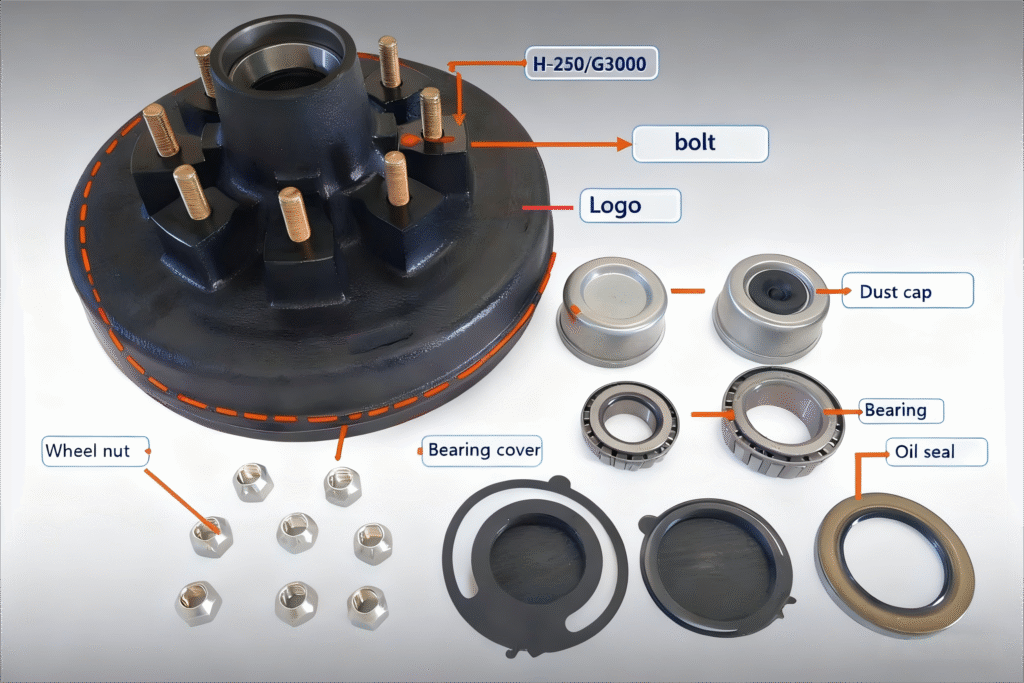

As a critical component of a vehicle’s braking system, the performance and stability of the trailer brake drum directly impact driving safety. It is constructed from multiple precision components, each of which is described in detail below:
Core Component – Brake Drum Body (marked with H-250/G3000)
The trailer brake drum body is the core load-bearing structure of the entire assembly. Made of high-strength materials, it offers excellent wear resistance and thermal fade resistance. During braking, it rubs against the brake pads, converting the vehicle’s kinetic energy into heat, thereby slowing and stopping the vehicle. Its surface undergoes a special treatment process to effectively extend its service life and ensure stable performance even under frequent braking operations.
Connecting and Fastening Components
Bolts: These bolts securely connect the brake drum body to other related components, such as the wheel hub. These bolts ensure stable positioning of the brake drum during driving and braking, preventing loosening due to vibration and other factors that could affect braking performance. Wheel nut: Its primary function is to secure the wheel. It is also closely related to the installation and securement of the brake drum. Working in conjunction with bolts, it provides a secure connection between the brake drum and the wheel.

Protective and Sealing Components

Dust cap: Acting as a protective shield, it prevents dust, sand, moisture, and other impurities from entering the brake drum’s bearings and other precision components. This prevents impurities from causing wear and corrosion, thereby ensuring proper operation and extending the bearing’s service life.

Oil seal: Serves as a seal, effectively preventing the lubricant from leaking out of the brake drum and preventing external contaminants from entering. This creates an optimal lubrication and working environment for the bearings and other components, ensuring smooth operation of the brake system.

Bearing cover: Encapsulates and protects the bearings and other components within the brake drum, further enhancing the seal and protective properties of the brake drum, allowing the bearings and other components to operate in a relatively closed and clean space. Support and Rotating Components
Bearings are key components for the brake drum’s flexible rotation. They support the drum’s rotation and reduce friction during rotation, allowing the wheel to rotate smoothly. High-quality bearings ensure stable rotation of the brake drum under various operating conditions, such as high-speed driving and braking, providing fundamental support for the vehicle’s driving and braking performance.
Logo Components
Logos typically include important product information such as the brand and model, making it easy for users to identify the product’s source and specifications. They also facilitate after-sales service and maintenance, and serve as an important symbol of product identity.
These components each perform their respective functions and work together to create a stable and reliable brake drum, ensuring safe braking of the trailer.
